CDH 6.3.2 安装部署
官网地址
https://www.cloudera.com/products/open-source/apache-hadoop/key-cdh-components.html
硬件需求
https://docs.cloudera.com/documentation/enterprise/6/release-notes/topics/rg_os_requirements.html
1 下载CM和CDH
cm下载地址：https://archive.cloudera.com/cm6/6.2.1/repo-as-tarball/
cdh下载地址：https://archive.cloudera.com/cdh6/6.2.1/parcels/
# 从2021年1月31日开始，所有Cloudera软件都需要有效的订阅，并且只能通过付费墙进行访问。
# 解决方案：用下面的库代替clouder官方库
http://ro-bucharest-repo.bigstepcloud.com/cloudera-repos/
可以下载
https://pan.baidu.com/s/125OQ01FsYyTGKPW0e43Cnw?pwd=boom 提取码: boom
2 CDH 6.2.1组件版本信息
| Component | Component Version | Changes Information |
|---|---|---|
| Apache Avro | 1.8.2 | Changes |
| Apache Flume | 1.9.0 | Changes |
| Apache Hadoop | 3.0.0 | Changes |
| Apache HBase | 2.1.2 | Changes |
| HBase Indexer | 1.5 | Changes |
| Apache Hive | 2.1.1 | Changes |
| Hue | 4.3.0 | Changes |
| Apache Impala | 3.2.0 | Changes |
| Apache Kafka | 2.1.0 | Changes |
| Kite SDK | 1.0.0 | Changes |
| Apache Kudu | 1.9.0 | Changes |
| Apache Solr | 7.4.0 | Changes |
| Apache Oozie | 5.1.0 | Changes |
| Apache Parquet | 1.9.0 | Changes |
| Parquet-format | 2.3.1 | Changes |
| Apache Pig | 0.17.0 | Changes |
| Apache Sentry | 2.1.0 | Changes |
| Apache Spark | 2.4.0 | Changes |
| Apache Sqoop | 1.4.7 | Changes |
| Apache ZooKeeper | 3.4.5 | Changes |
3 搭建步骤
安装文档参考 https://docs.cloudera.com/documentation/enterprise/6/6.3/topics/installation.html
1.1 硬件检查
# 查看操作系统版本
cat /etc/redhat-release
# 查看内存
cat /proc/meminfo
# 查看cpu核数
cat /proc/cpuinfo| grep "processor"| wc -l
# 查看cpu个数
cat /proc/cpuinfo| grep "physical id"| sort| uniq| wc -l
# 查看磁盘容量
df -h
1.2 基础环境搭建
1.2.1 配置ip（本地环境）
# vim /etc/sysconfig/network-scripts/ifcfg-ens33
IPADDR="192.168.219.150"
BOOTPROTO="static"
NETMASK="255.255.255.0"
GATEWAY="192.168.219.2"
1.2.2 修改主机名
注意：这里主机名必须为小写，后续 kerberos 会报错。
hostnamectl set-hostname 主机名
添加主机映射
vim /etc/hosts
10.0.6.112 cdh-112
10.0.6.113 cdh-113
10.0.6.114 cdh-114
10.0.6.115 cdh-115
10.0.6.116 cdh-116
1.2.3 安装jdk
所有节点都执行
rpm -qa|grep jdk
java-1.8.0-openjdk-1.8.0.242.b08-1.el7.x86_64
java-1.7.0-openjdk-headless-1.7.0.251-2.6.21.1.el7.x86_64
java-1.8.0-openjdk-headless-1.8.0.242.b08-1.el7.x86_64
java-1.7.0-openjdk-1.7.0.251-2.6.21.1.el7.x86_64
copy-jdk-configs-3.3-10.el7_5.noarch
# 删除以上安装包
rpm -e --nodeps java-1.8.0-openjdk-1.8.0.242.b08-1.el7.x86_64
rpm -e --nodeps java-1.7.0-openjdk-headless-1.7.0.251-2.6.21.1.el7.x86_64
rpm -e --nodeps java-1.8.0-openjdk-headless-1.8.0.242.b08-1.el7.x86_64
rpm -e --nodeps java-1.7.0-openjdk-1.7.0.251-2.6.21.1.el7.x86_64
rpm -e --nodeps copy-jdk-configs-3.3-10.el7_5.noarch
# 安装
rpm -ivh oracle-j2sdk1.8-1.8.0+update181-1.x86_64.rpm
# 默认安装位置
/usr/java/jdk1.8.0_181-cloudera
# 配置环境变量
vim /etc/profile 结尾处添加
export JAVA_HOME=/usr/java/jdk1.8.0_181-cloudera
export CLASSPATH=.:$JAVA_HOME/jre/lib/rt.jar:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$PATH:$JAVA_HOME/bin
# 环境变量生效
source /etc/profile
1.2.4 关闭防火墙
# 查看防火墙状态
systemctl status firewalld.service
# 关闭防火墙
systemctl stop firewalld.service
# 关闭开机禁用防火墙自启
systemctl disable firewalld.service
1.2.5 关闭selinux
# vim /etc/selinux/config
SELINUX=disabled (修改)
1.2.6 安装时间同步服务
所有节点同时安装ntp
e
在主节点上编辑配置文件
vim /etc/ntp.conf
// master节点配置（ntp.conf）
# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
#指向时间服务器
server ntp.aliyun.com
//slaves节点配置
# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
注意：如果公司有时间服务器，所有节点都指向公司的时间服务器，如果没有，可选择一台作为时间服务器主节点，其他节点指向它即可。
开机启动
systemctl enable ntpd
系统时间同步到硬件
hwclock --systohc
1.2.7 安装mysql
选择其中一台
卸载自带 MySQL
rpm -qa | grep mysql
rpm -e --nodeps mysql //强力删除
下载
wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
yum 安装
rpm -ivh mysql-community-release-el7-5.noarch.rpm
yum install mysql-server -y
MySQL 启动
systemctl start mysqld.service
登录数据库，密码为空
mysql -uroot -p
设置密码
update mysql.user set password=PASSWORD('123456') where User='root';
开启 root 远程访问
grant all privileges on *.* to 'root'@'%' identified by '123456' with grant option;
删除用户
delete from mysql.user where user='ambari';
drop user "ambari"@"%";
刷新权限并退出
flush privileges;
exit;
1.2.8 配置 mysql-connector-java 包
每个节点
创建文件夹
mkdir -p /usr/share/java
cd /usr/share/java
驱动下载
wget https://dev.mysql.com/get/Downloads/Connector-J/mysql-connector-java-5.1.46.tar.gz
tar zxvf mysql-connector-java-5.1.46.tar.gz
cd mysql-connector-java-5.1.46
cp mysql-connector-java-5.1.46-bin.jar /usr/share/java/mysql-connector-java.jar
1.2.9 配置ssh免密登陆
生成秘钥
ssh-keygen -t rsa
拷贝到其他节点 （包括本身）
ssh-copy-id -i cdh-112
1.2.10 下载第三方依赖包
所有节点
yum install -y bind-utils psmisc cyrus-sasl-plain cyrus-sasl-gssapi fuse portmap fuse-libs /lib/lsb/init-functions httpd mod_ssl openssl-devel python-psycopg2 MySQL-python libxslt
1.2.11 创建ClouderaManager用户
useradd --system --no-create-home --shell=/bin/false --comment "Cloudera SCM User" cloudera-scm
1.3 CM安装部署
1.3.1 MySQL中建库
1）创建各组件需要的数据库
GRANT ALL ON scm.* TO 'scm'@'%' IDENTIFIED BY '123456';
CREATE DATABASE hive DEFAULT CHARSET utf8 COLLATE utf8_general_ci;
CREATE DATABASE hue DEFAULT CHARSET utf8 COLLATE utf8_general_ci;
可以按照官方推荐创建
| Cloudera Manager Server | scm | scm |
|---|---|---|
| Activity Monitor | amon | amon |
| Reports Manager | rman | rman |
| Hue | hue | hue |
| Hive Metastore Server | metastore | hive |
| Sentry Server | sentry | sentry |
| Cloudera Navigator Audit Server | nav | nav |
| Cloudera Navigator Metadata Server | navms | navms |
| Oozie | oozie | oozie |
1.3.2 CM安装
（1）集群规划
| 节点 | cdh-112 | cdh-113 | cdh-114 |
|---|---|---|---|
| 服务 | cloudera-scm-server cloudera-scm-agent | cloudera-scm-agent | cloudera-scm-agent |
（2）创建cloudera-manager目录,存放cdh安装文件
创建文件夹
mkdir /opt/cloudera-manager
解压
tar -zxvf cm6.3.1-redhat7.tar.gz
移动
cd cm6.3.1/RPMS/x86_64/
cp cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm /opt/cloudera-manager/
cp cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm /opt/cloudera-manager/
cp cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm /opt/cloudera-manager/
cd /opt/cloudera-manager/
ll
total 1185872
-rw-r--r-- 1 2001 2001 10483568 Sep 25 2019 cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm
-rw-r--r-- 1 2001 2001 1203832464 Sep 25 2019 cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm
-rw-r--r-- 1 2001 2001 11488 Sep 25 2019 cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm
（3）拷贝cloudera-manager到其他节点
scp -r /opt/cloudera-manager/ root@cdh-112:/opt/
scp -r /opt/cloudera-manager/ root@cdh-113:/opt/
（4）每个节点安装cloudera-manager-daemons,安装完毕后生成/opt/cloudera目录
rpm -ivh /opt/cloudera-manager/cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm
（5）每个节点安装cloudera-manager-agent
rpm -ivh /opt/cloudera-manager/cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm
或者使用yum -y install命令，示例：yum -y install cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm
（6）配置agent的server节点
指定 server的 ip
vim /etc/cloudera-scm-agent/config.ini
server_host=cdh-112
（7）安装cloudera-manager-server
主节点
[root@cdh-112]# rpm -ivh /opt/cloudera-manager/cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm
（8）上传CDH包导parcel-repo
mkdir -p /opt/cloudera/parcel-repo
cp CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel /opt/cloudera/parcel-repo
cp CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1 /opt/cloudera/parcel-repo
cp manifest.json /opt/cloudera/parcel-repo
修改.sha1名称为.sha
mv CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1 CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha
（9）修改server的db.properties
vim /etc/cloudera-scm-server/db.properties
com.cloudera.cmf.db.type=mysql
com.cloudera.cmf.db.host=cdh-112:3306
com.cloudera.cmf.db.name=scm
com.cloudera.cmf.db.user=scm
com.cloudera.cmf.db.password=123456
com.cloudera.cmf.db.setupType=EXTERNAL
（10）初始化数据库
/opt/cloudera/cm/schema/scm_prepare_database.sh mysql -hlocalhost -uroot -p scm scm
[root@cdh-112 cloudera-manager]# /opt/cloudera/cm/schema/scm_prepare_database.sh mysql -hlocalhost -uroot -p scm scm
Enter database password:
Enter SCM password:
JAVA_HOME=/usr/java/jdk1.8.0_181-cloudera
Verifying that we can write to /etc/cloudera-scm-server
Creating SCM configuration file in /etc/cloudera-scm-server
Executing: /usr/java/jdk1.8.0_181-cloudera/bin/java -cp /usr/share/java/mysql-connector-java.jar:/usr/share/java/oracle-connector-java.jar:/usr/share/java/postgresql-connector-java.jar:/opt/cloudera/cm/schema/../lib/* com.cloudera.enterprise.dbutil.DbCommandExecutor /etc/cloudera-scm-server/db.properties com.cloudera.cmf.db.
[ main] DbCommandExecutor INFO Successfully connected to database.
All done, your SCM database is configured correctly
# 官网地址：https://docs.cloudera.com/documentation/enterprise/latest/topics/prepare_cm_database.html
（11）启动server服务
systemctl start cloudera-scm-server
日志地址
tail -f /var/log/cloudera-scm-server/cloudera-scm-server.log
设置为开启自启
chkconfig cloudera-scm-server on
（12）启动agent节点
systemctl start cloudera-scm-agent
日志地址
/var/log/cloudera-scm-agent/cloudera-scm-agent.log
设置为开机自启
chkconfig cloudera-scm-agent on
启动后初始化有点慢，可以tail -f 日志，等一会儿再登录web页面
1.4 登陆安装向导
1.4.1 登陆地址
http://cdh-112:7180
# 用户名/密码：admin/admin

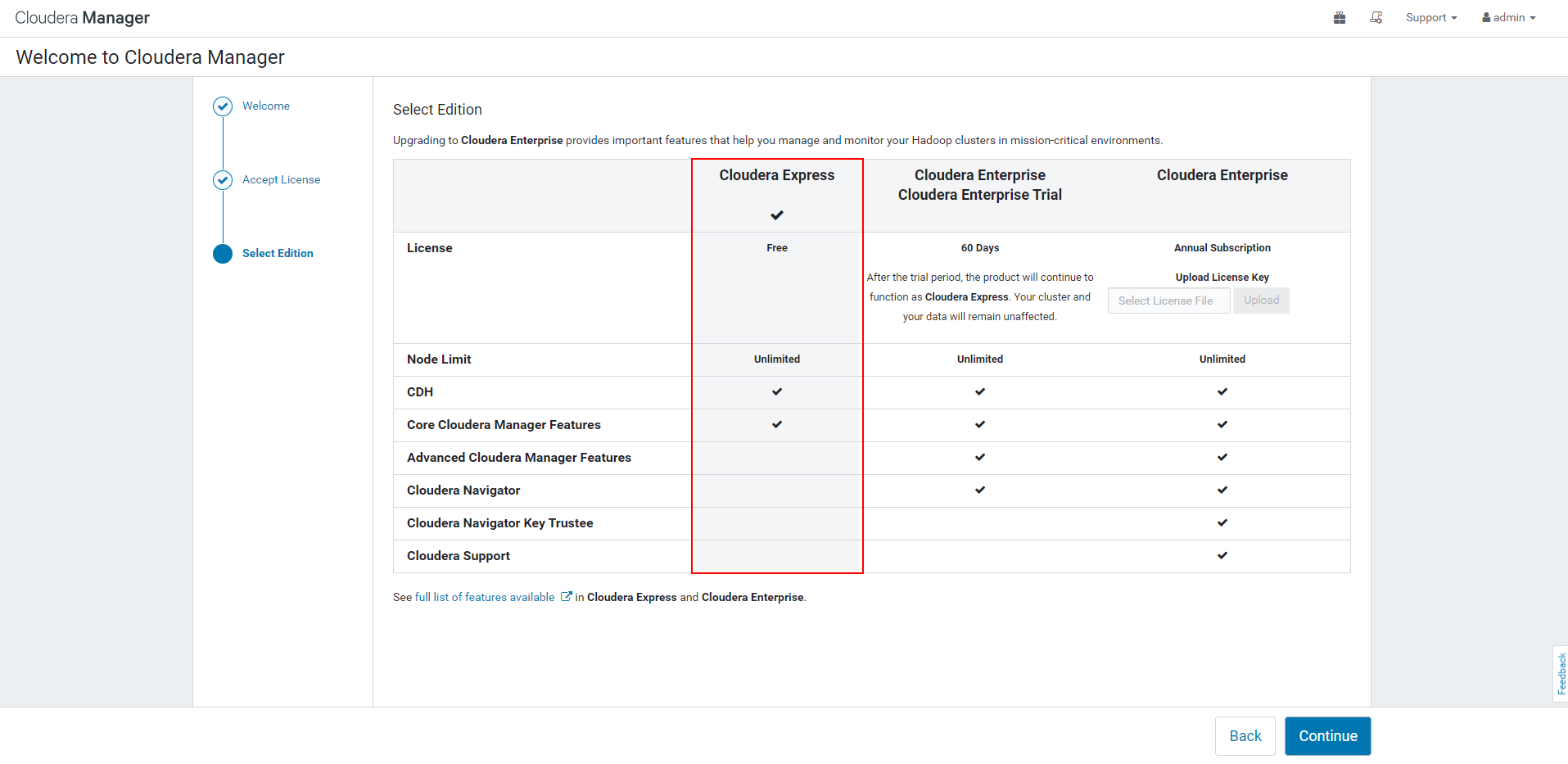

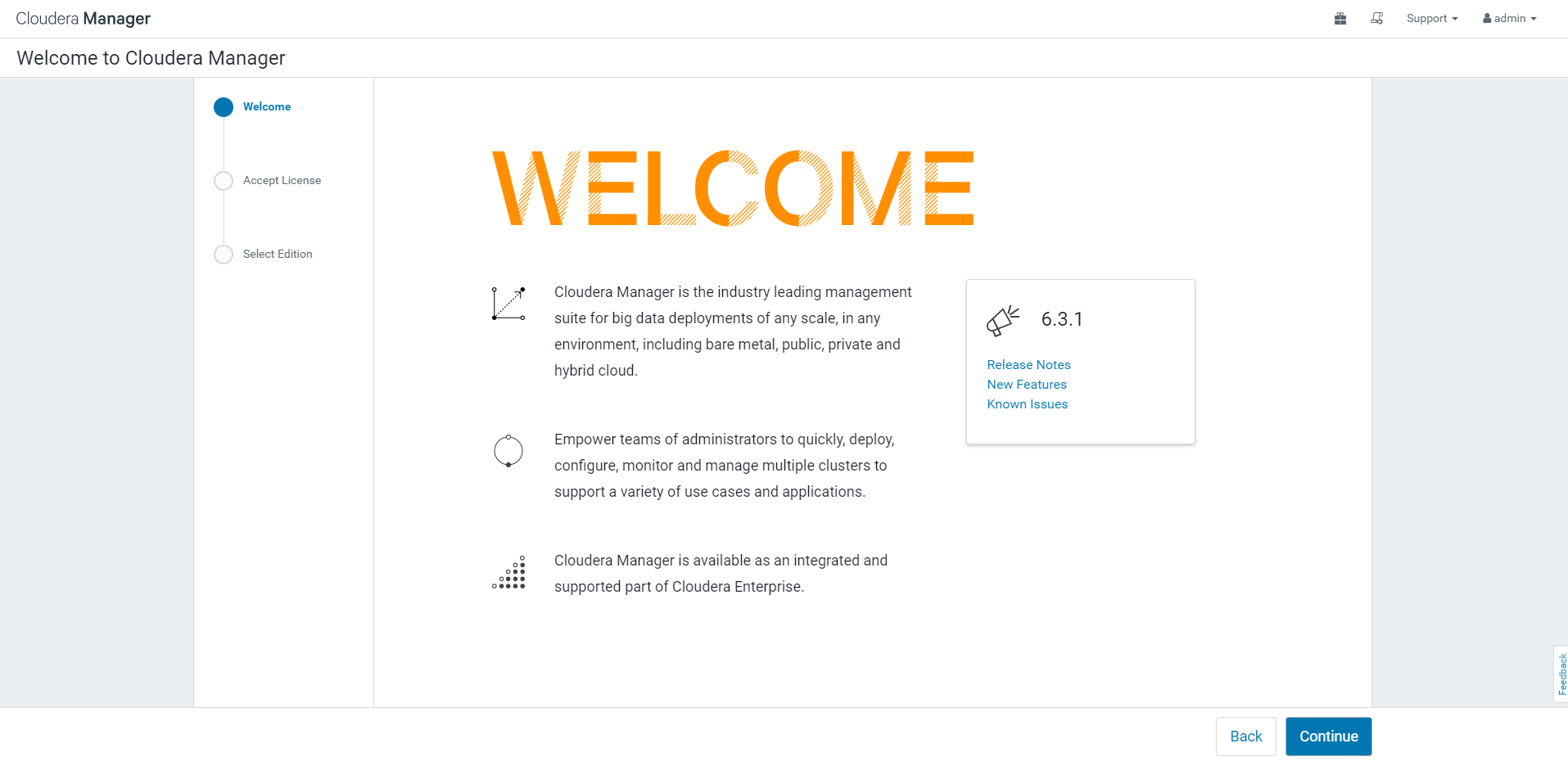

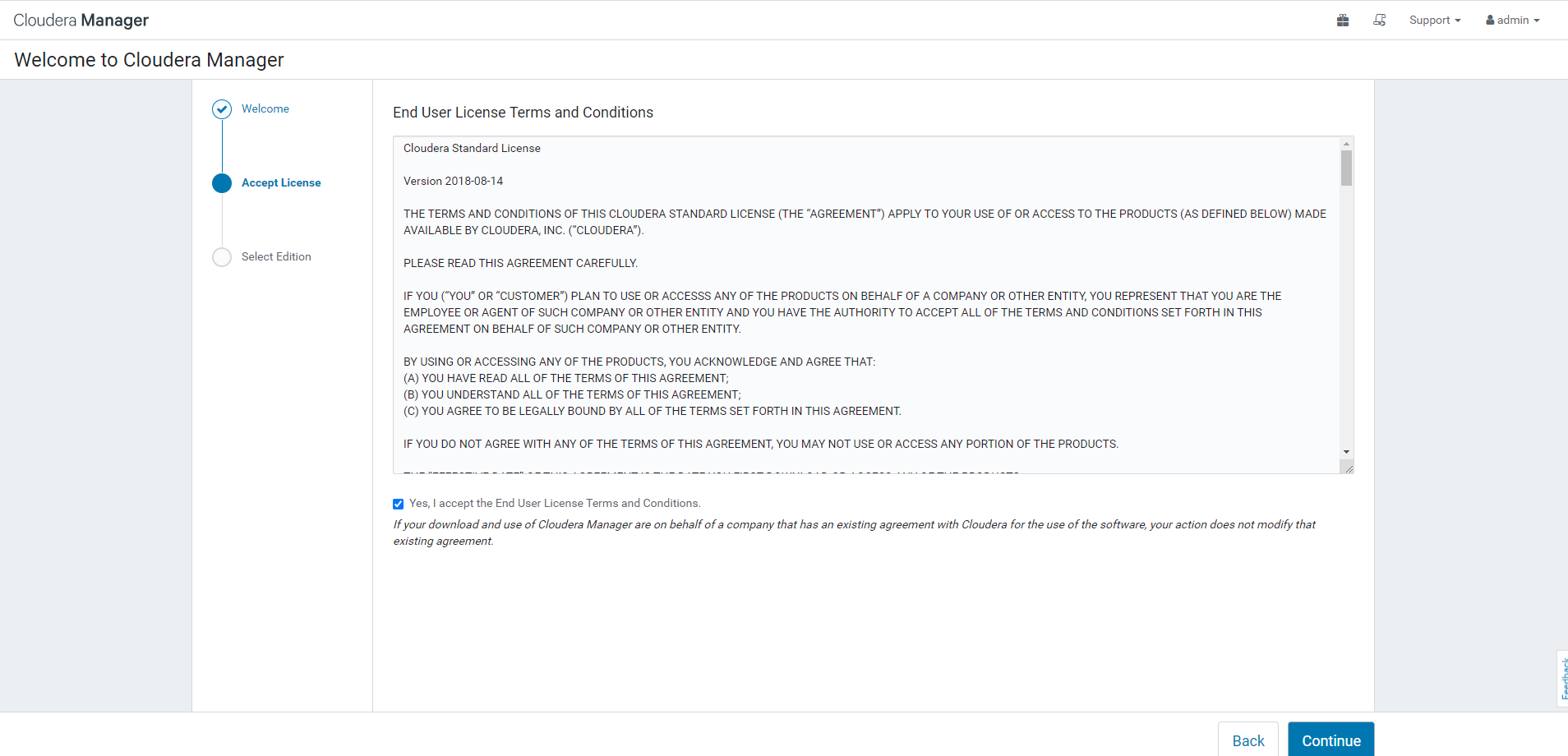

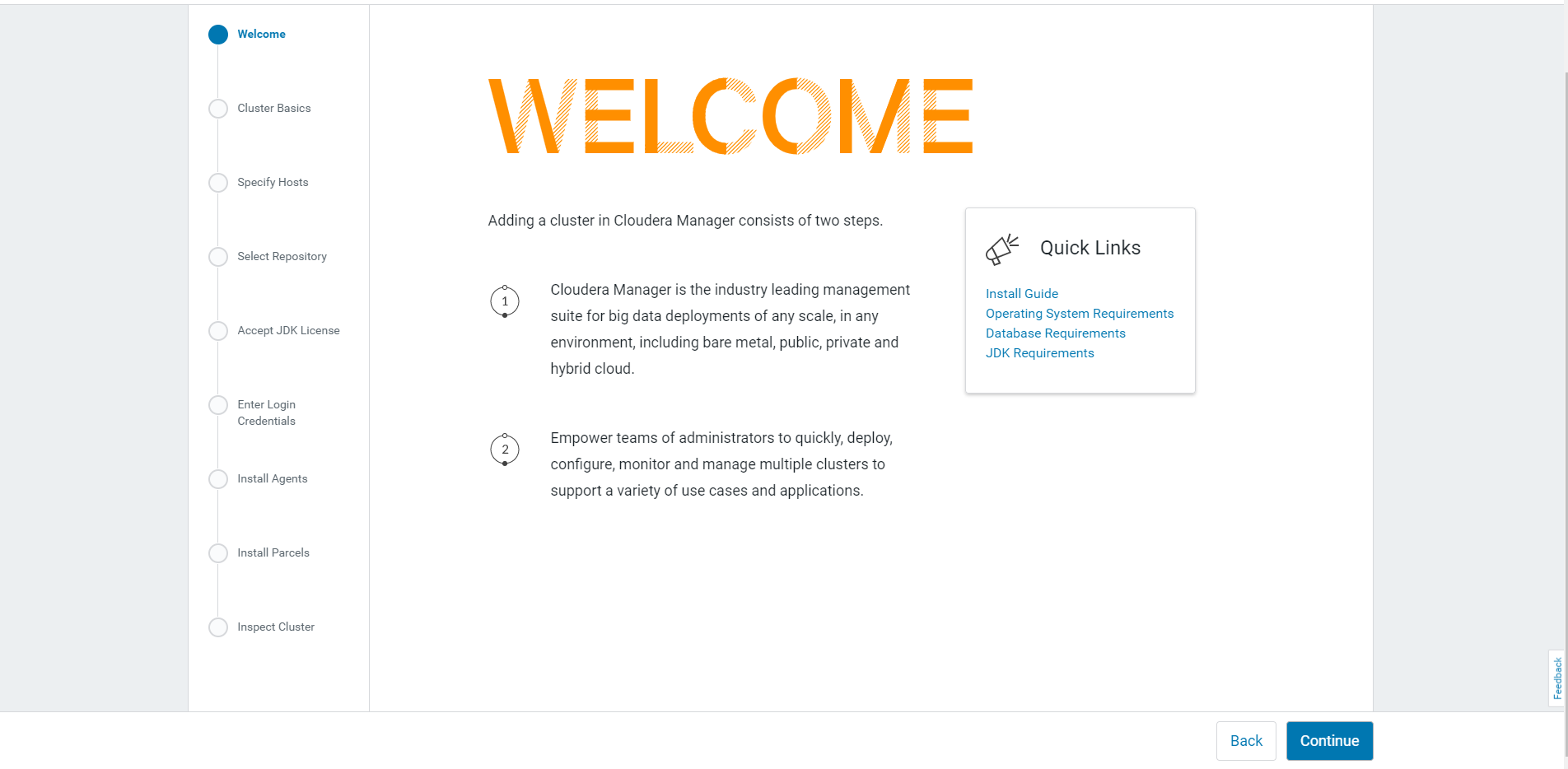

1.4.2 安装向导
Continue 即可 需要等待一会儿
1.5 集群安装

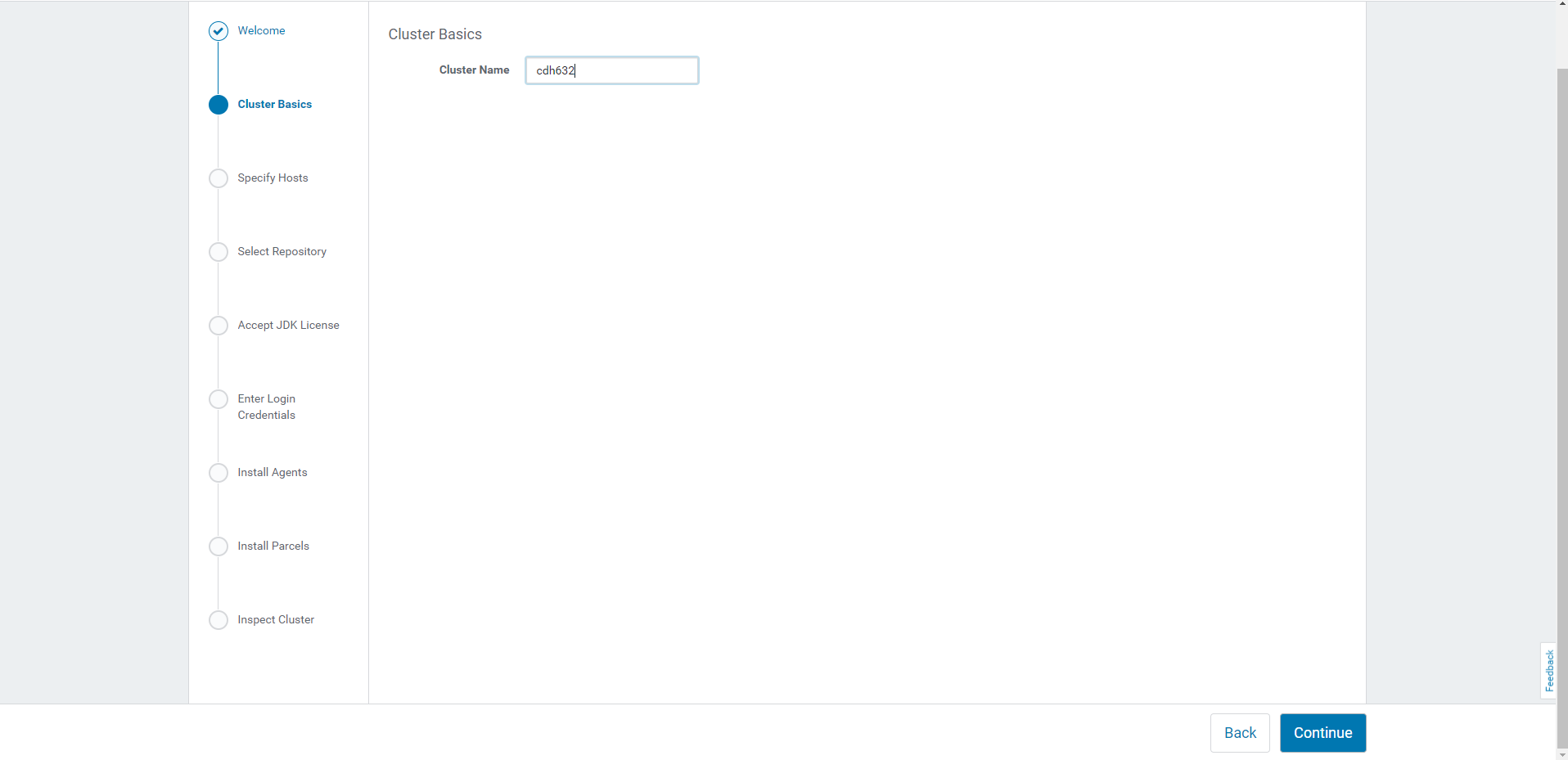

1.5.1 集群命名

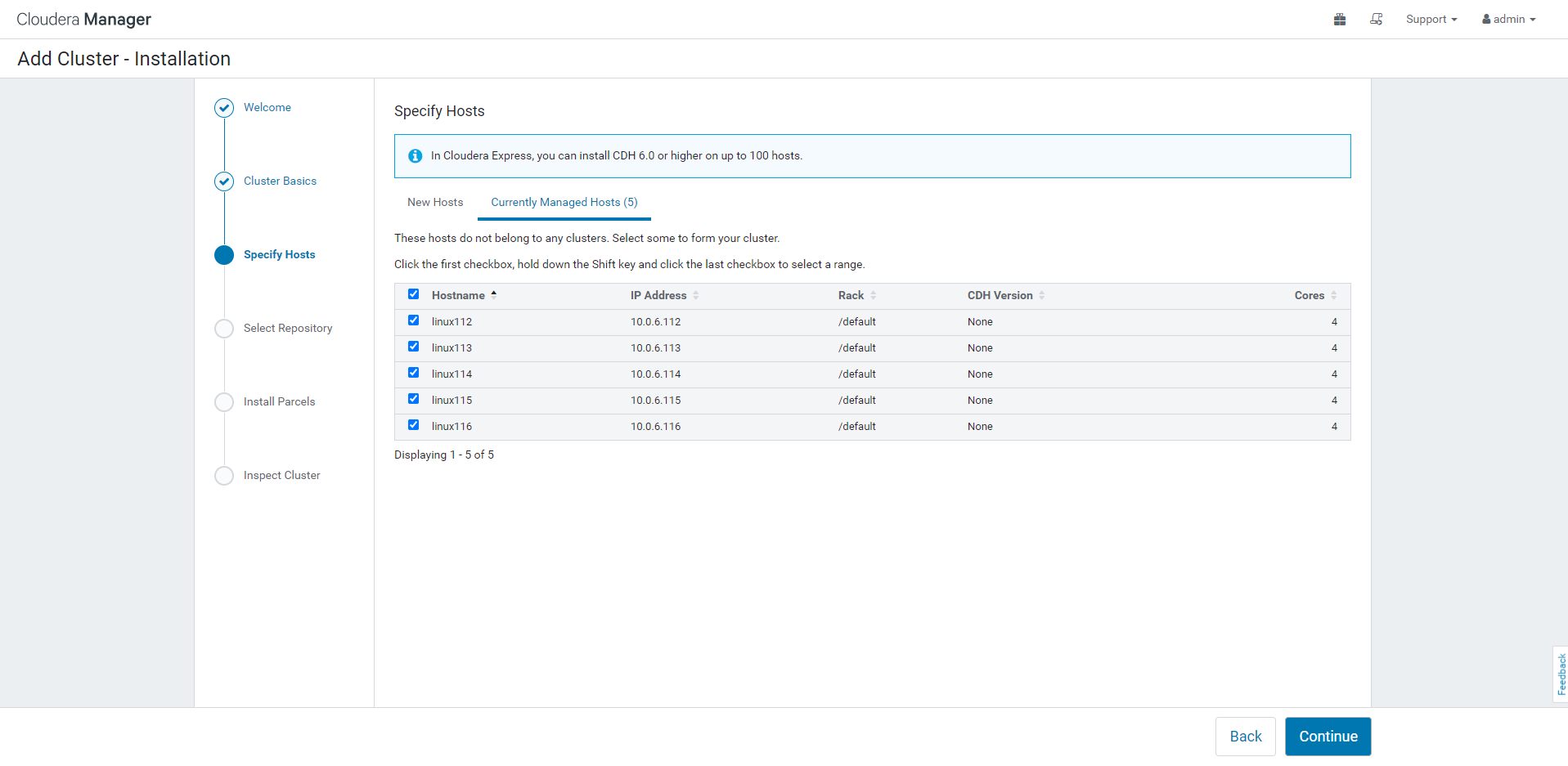

1.5.2 选择主机

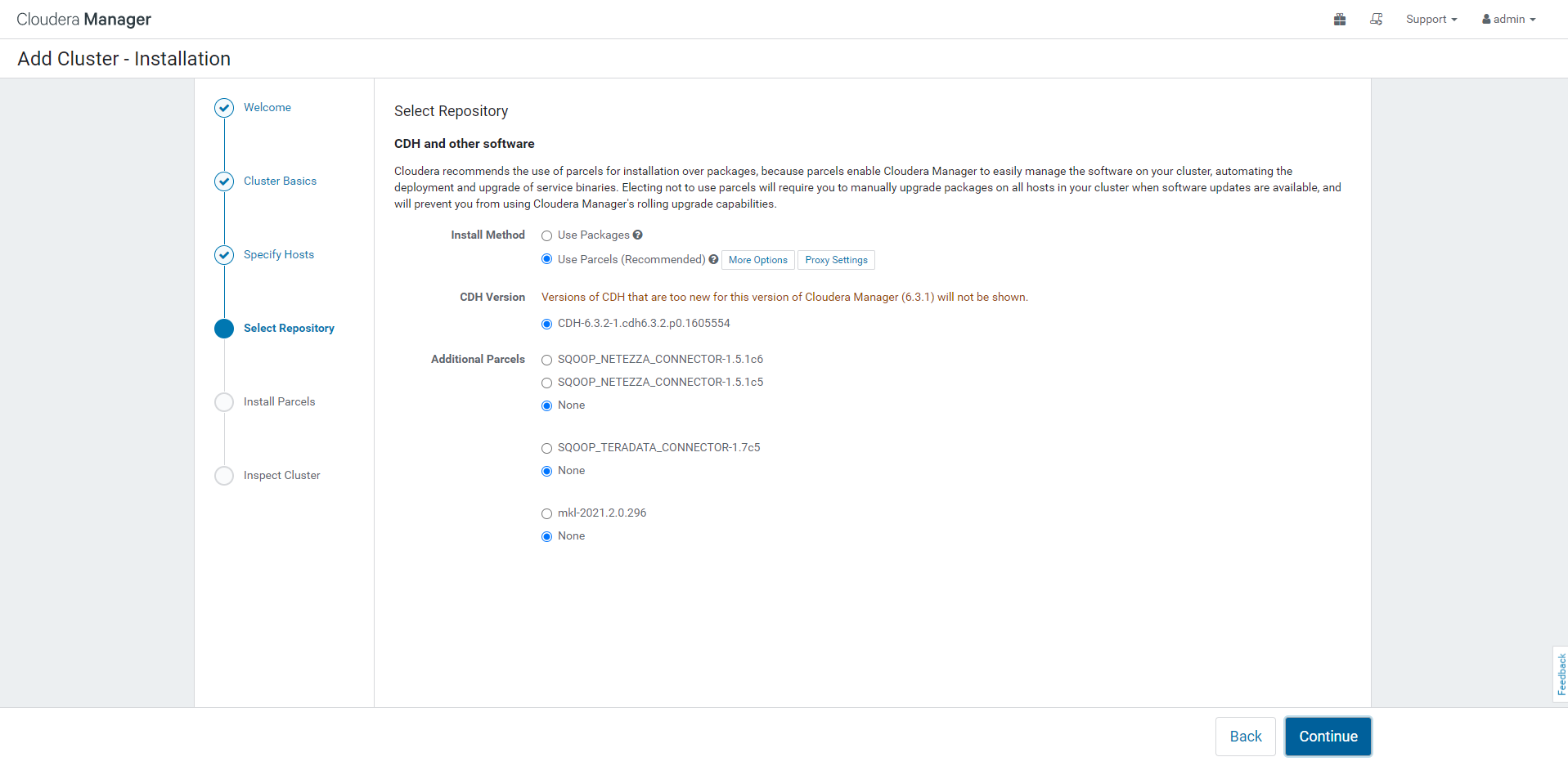

1.5.3 选择存储库

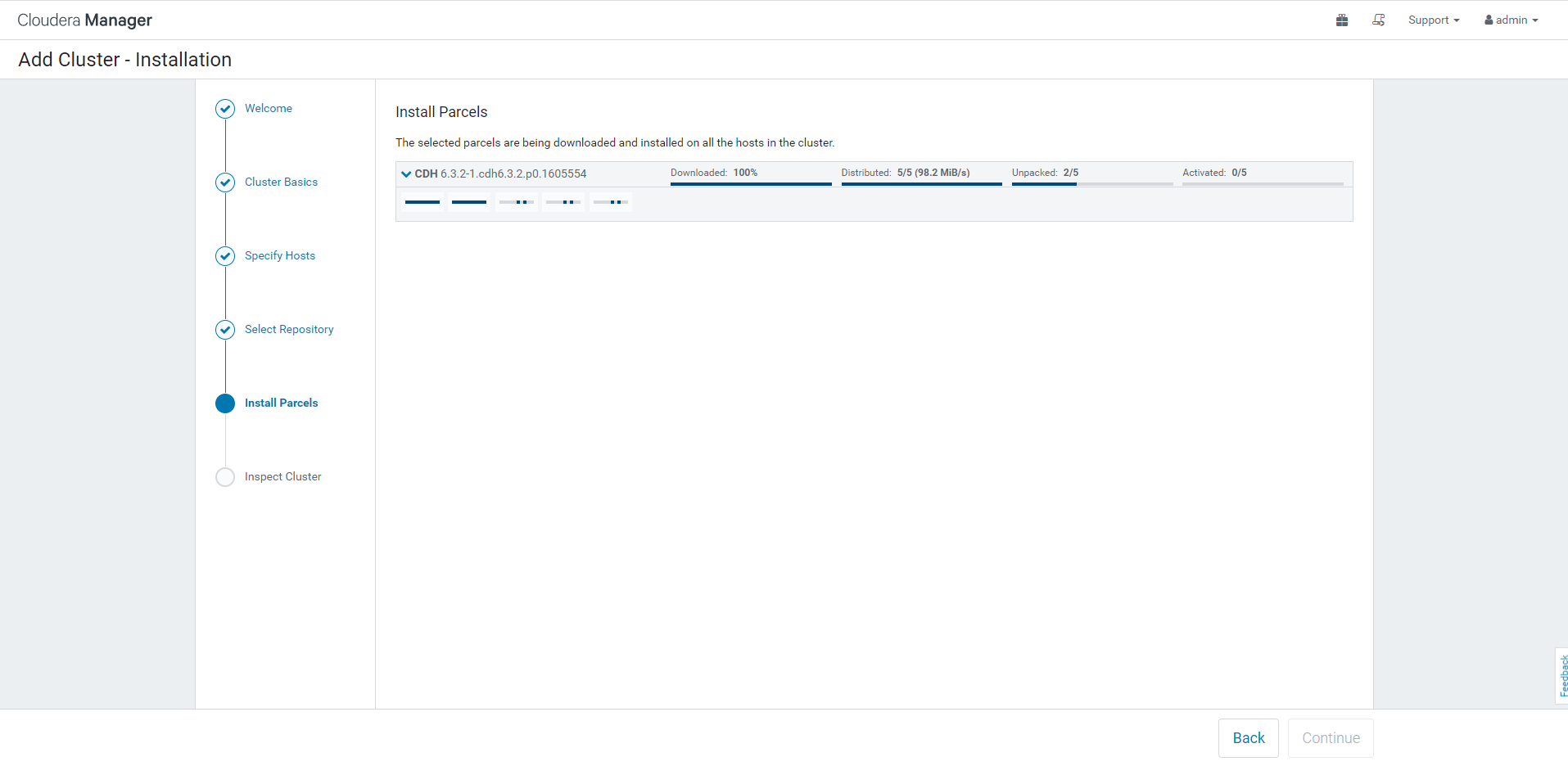

1.5.4 执行安装

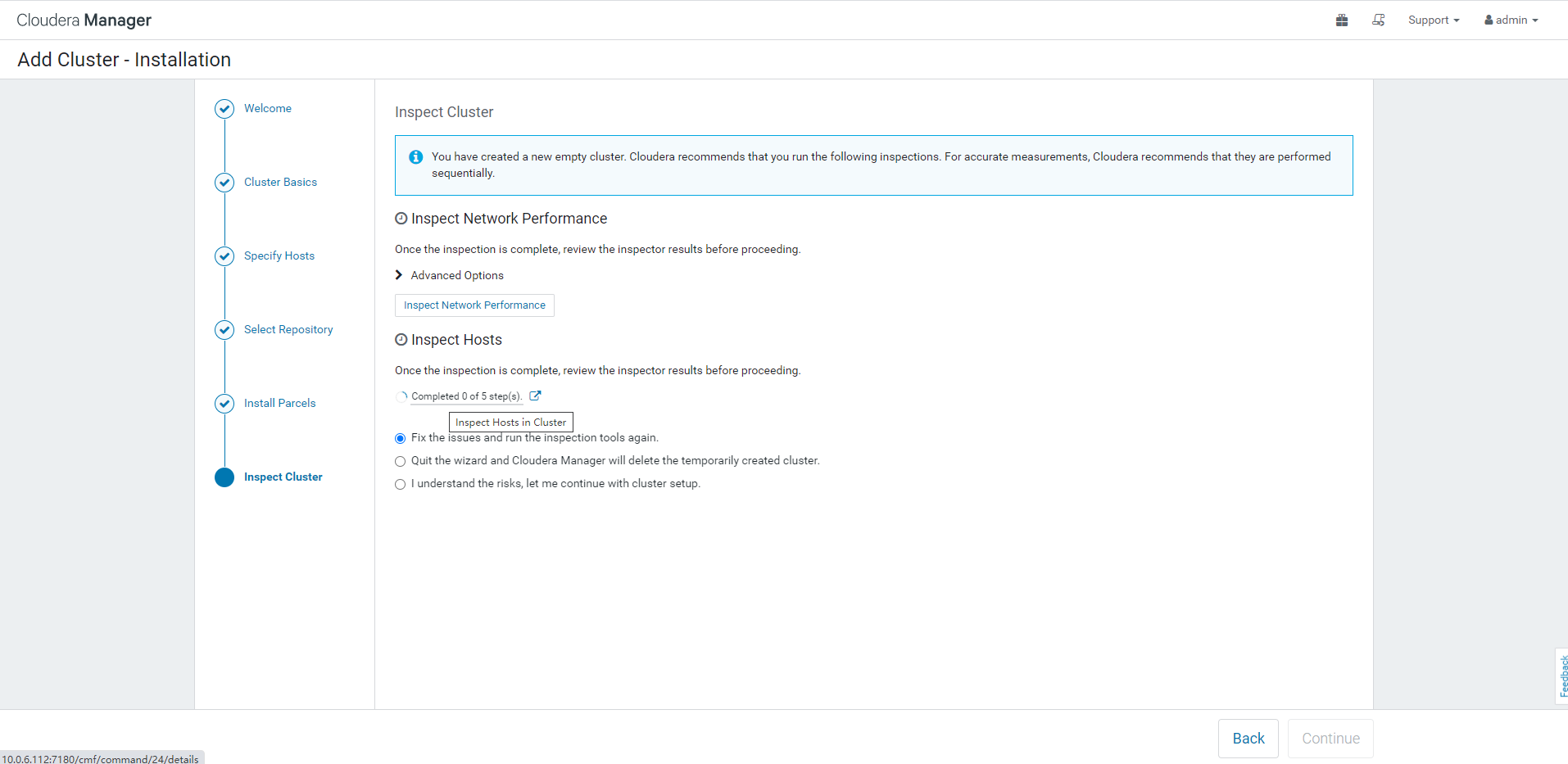

1.5.5 检查网络和主机性能
所有节点执行
#关闭交换空间
#临时关闭
swapoff -a
#永久关闭
vim /etc/fstab
注释掉 swap 行即可
以上两步均要操作，当前关闭，永久关闭，防止机器重启失效
# 关闭透明大页
echo never > /sys/kernel/mm/transparent_hugepage/defrag
echo never > /sys/kernel/mm/transparent_hugepage/enabled
执行完后， 点击 Run Again

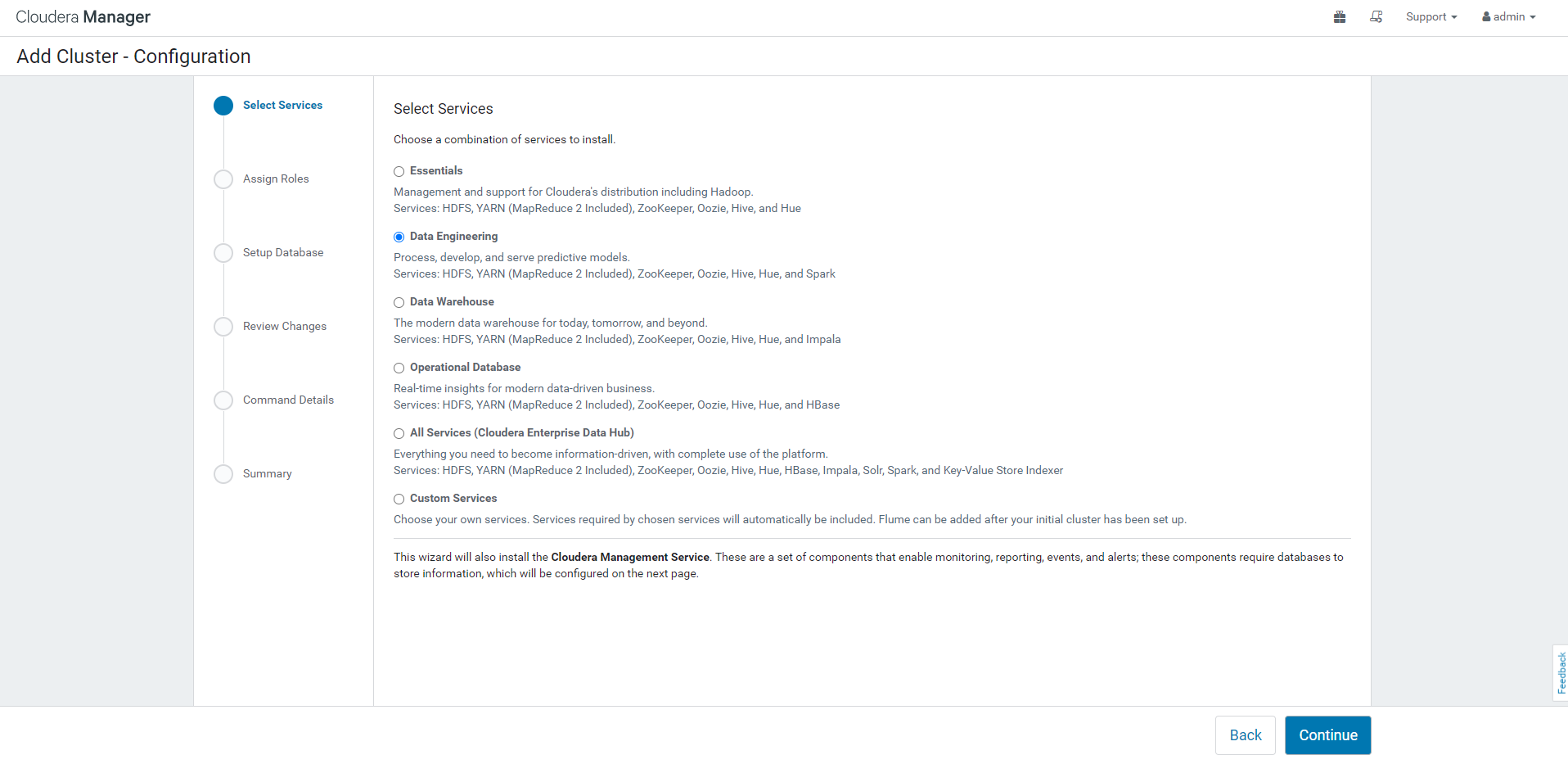

1.5.6 选择服务
1.5.7 配置hive连接
之前已经创建了 hive oozie hue 的数据库
4 常见异常
oozie 页面无法使用
安装包中的 ext-2.2.zip 上传到 /var/lib/oozie/目录下解压即可
Hive Metastore 创建数据库失败
复制mysql 驱动到
cp /usr/share/java/mysql-connector-java.jar /opt/cloudera/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554/lib/hive/lib
重启hive
5 关于失败重装
-
删除数据库scm
-
清空/var/lib/cloudera-scm-server和/var/log/cloudera-scm-agent
-
清空/opt/cloudera/parcel-cache和/opt/cloudera/parcels
-
清空server节点/opt/cloudera/parcel-repo下非下载的文件
-
rm -rf /var/lib/cloudera-scm-agent/cm_guid
6.卸载
rpm -e --nodeps cloudera-manager-daemons-6.3.1-1466458.el7.x86_64
rpm -e --nodeps cloudera-manager-agent-6.3.1-1466458.el7.x86_64
rpm -e --nodeps cloudera-manager-server-6.3.1-1466458.el7.x86_64
参考 https://blog.csdn.net/wzy0623/article/details/102946646
rm -rf /var/log/*
rm -rf /opt/cloudera*
rm -rf /etc/systemd/system/multi-user.target.wants/cloudera*
rm -rf /etc/default/cloudera*
rm -rf /etc/cloudera*
rm -rf /var/lib/cloudera*
rm -rf /var/log/cloudera*
rm -rf /usr/lib/systemd/system/cloudera*
rm -rf /run/cloudera*
rm -rf /sys/fs/cgroup/systemd/system.slice/cloudera*
rm -rf /etc/security/limits.d/cloudera*
rm -rf /var/lib/yum/repos/x86_64/7/cloudera*
rm -rf /var/cache/yum/x86_64/7/cloudera*
rm -rf /tmp/*
rm -rf /var/lib/hadoop-*
rm -rf /var/lib/impala
rm -rf /var/lib/solr
rm -rf /var/lib/zookeeper
rm -rf /var/lib/hue
rm -rf /var/lib/oozie
rm -rf /var/lib/pgsql
rm -rf /var/lib/sqoop2
rm -rf /data/dfs/
rm -rf /data/impala/
rm -rf /data/yarn/
rm -rf /dfs/
rm -rf /impala/
rm -rf /yarn/
rm -rf /var/run/hadoop-*/
rm -rf /var/run/hdfs-*/
rm -rf /usr/bin/hadoop*
rm -rf /usr/bin/zookeeper*
rm -rf /usr/bin/hbase*
rm -rf /usr/bin/hive*
rm -rf /usr/bin/hdfs
rm -rf /usr/bin/mapred
rm -rf /usr/bin/yarn
rm -rf /usr/bin/sqoop*
rm -rf /usr/bin/oozie
rm -rf /etc/hadoop*
rm -rf /etc/zookeeper*
rm -rf /etc/hive*
rm -rf /etc/hue
rm -rf /etc/impala
rm -rf /etc/sqoop*
rm -rf /etc/oozie
rm -rf /etc/hbase*
rm -rf /etc/hcatalog
rm -rf /var/lib/alternatives/impala-conf
rm -rf /var/lib/alternatives/impalad
rm -rf /var/lib/alternatives/impala-collect-diagnostics
rm -rf /var/lib/alternatives/impala-shell
rm -rf /var/lib/alternatives/impala-collect-minidumps
rm -rf /etc/alternatives/impala-shell
rm -rf /etc/alternatives/impalad
rm -rf /etc/alternatives/impala-collect-diagnostics
rm -rf /etc/alternatives/impala-conf
rm -rf /etc/alternatives/impala-collect-minidumps
rm -rf /var/log/impala*
rm -rf /var/lib/alternatives/zookeeper-client
rm -rf /var/lib/alternatives/zookeeper-server
rm -rf /var/lib/alternatives/zookeeper-conf
rm -rf /var/lib/alternatives/zookeeper-server-initialize
rm -rf /var/lib/alternatives/zookeeper-server-cleanup
rm -rf /var/lib/alternatives/zookeeper-security-migration
rm -rf /etc/alternatives/zookeeper-conf
rm -rf /etc/alternatives/zookeeper-server
rm -rf /etc/alternatives/zookeeper-server-cleanup
rm -rf /etc/alternatives/zookeeper-server-initialize
rm -rf /etc/alternatives/zookeeper-security-migration
rm -rf /etc/alternatives/zookeeper-client
rm -rf /var/log/zookeeper
